Inline flat cable is suitable for coal stacking operations in power plants. Due to the harsh working conditions, the requirements for cables are extremely high. The company uses imported polyvinyl chloride polymer materials with environmental protection, wear resistance, tensile resistance, oil resistance, flame resistance, UV resistance,pt100 thermocouple Waterproof and other performance, mobile electrical power transmission lines and control, lighting, communication channels for mobile electrical appliances such as trolleys, transmission machinery, elevators, cranes, tower cranes, and telescopic machinery and equipment can also be used for connection and installation of mobile machinery components in closed indoor environments.
•Inline flat cable Features
1) The flat cable has the characteristics of cold resistance, softness, wear resistance and oil resistance.
2) The bending radius is smaller than the round cable,AnHui TianKang (Group)Shares Co.,Ltd saving installation space .
3) Multiple cables can be overlapped and used.
4) High flexibility-multiple strands of fine-stranded oxygen-free fine copper wire stranded bundled wire conductors, ensuring the flexibility and flexibility of the core sheathed thermocouple.
6) Bending resistance-optimized cable pitch, special structure design, high-quality raw materials, ensuring long-term work in high-frequency bending situations is not easy to break the core.
7) Tensile strength—two reinforced galvanized steel wire ropes.
7) Abrasion resistance, oil resistance, and anti-aging-using high-quality mixed jacket material.
8) Waterproof, acid and alkali resistant,High temperature ceramic thermocouple radiation proof, and corrosion resistant-imported TPU special sheath material, seawater and other harsh environments

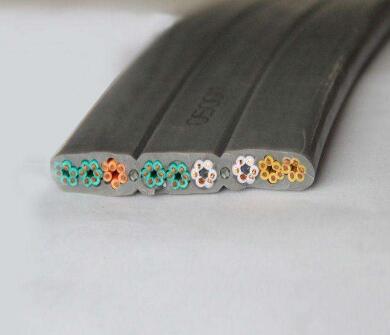

•Inline flat cable structure
Conductor: Multi-strand ultra-fine fine oxygen-free copper wire, in accordance with VDE0295CLASS 5 standard
Insulation: Special hybrid PVC insulation
Color: color representation,furnace wear-resistant thermocouple in accordance with GB5023.6 (yellow, white, orange, light green, pink) digital numbering (no yellow-green ground wire)
Lining: None.
Reinforcement: high-strength galvanized aviation steel wire (optional);
Sheath: Cold-resistant PVC special sheath gray or black
Rated voltage: 300 / 500V:
Test voltage: 2500V
Static bending test: 0.3m <0.6m:
Vertical combustion test: Passed GB / T18380.1-2001, IEC60332-1: 1993 test:
Product standards: GB50233.6, lEC60227-6, EN5021 4.
Guidelines for use:
Under normal use,Surface Thermocouple probe the maximum conductor temperature is 70 uc_
When used as follows
• When the font is aligned
1. Free use length is greater than 35m;
2, running speed is greater than Customized thermocouple price 1.6m / s;
We should consider adding load-bearing components in the cable. The load-bearing components are generally galvanized soft steel wire rope or fiber rope such as aramid yarn
Plum blossom type twisted arrangement
1. Free hanging length is more than 80m;
2, running speed is 4.0m / s ~ 10.0 m / s;
Considering the addition of load-bearing components in the cable, the load-bearing components are generally galvanized soft steel wire rope.
