1、Flat cable YFEB Executive standard:
The flat cable is manufactured according to the enterprise standard Q / zsj24.
2、Flat cable YFEB Purpose:
Flat cable is suitable for connection of mobile electrical equipment in power generation, metallurgy, chemical industry, port and other harsh environments.
3、Flat cable YFEB Model and name
| Model | Name |
| YVVB | Flexible PVC insulated and sheathed flat cables for mobile use |
| YFFB | Flat cables for nbr-pe composite insulation and sheath mobile use |
| YEEB | Thermoplastic elastomer insulated and sheathed flat cables for mobile use |
| YGGB | Flat cables for mobile use with silicone rubber insulation and sheath |
| YVFB | PVC insulated thermoplastic elastomer sheathed mobile flat cable |
| YVEB | PVC insulated thermoplastic elastomer sheathed mobile flat cable |
| YFEB | NBR-PVC composite insulated thermoplastic elastomer sheathed mobile flat cable |
| YFGB | NBR PVC composite insulated silicone rubber sheathed mobile flat cable |
| YGFB | Silicone rubber insulated NBR PVC composite sheathed flat cable for mobile use |
| YGEB | Flat cable with silicone rubber insulation and thermoplastic elastomer sheath for mobile use |

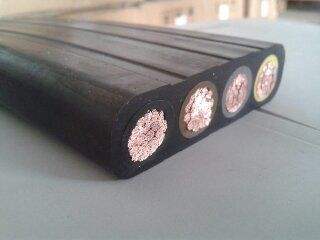

Flat cable YFEB
4、 Product representation
Give an example
(1) Rated voltage 0 6 / 1kV flexible PVC insulated and sheathed mobile flat cable, 3 cores, 25mm ²
Expressed as: yvvb-0 6 / 1 3 x 25mm
(2) Flat cable with rated voltage of 0 6 / 1kV, silicone rubber insulation and sheath, 4-core, 6mm ²
Expressed as: ygg-0 6 / 1 4 x 6mm
(3) Flat cable, 3-core, 35mm? For mobile use, with silicon rubber sheath and NBR PVC composite insulation, rated voltage 0 6 / 1kV
Expressed as:
YFGB-0 6/1 3 x 35mm²
5、 Use properties
① Long term working temperature of cable conductor: PVC insulation, NBR PVC insulation, Thermoplastic Elastomer Insulation not more than 70 ℃; silicone rubber insulation not more than 180 ℃
② The minimum bending radius of the cable shall not be less than 6 times of the outer diameter of the cable.
③ The minimum ambient temperature during cable operation: PVC insulation not less than 0 ℃, NBR PVC composite insulation, Thermoplastic Elastomer Insulation not less than – 20 ℃; silicone rubber insulation not less than – 40 ℃
④ The cable movement speed is PVC insulated, NBR PVC insulated, thermoplastic elastomer insulation is not more than 15m / s, and silicone rubber insulation is not more than 125m / s
