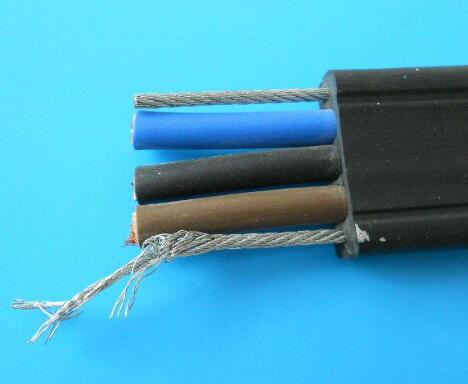

YCBPG steel wire reinforced shield heavy duty flat cable application:
YCBPG wire strengthening shielding heavy flat cable used in crane, bridge crane, crane beam, single girder bridge crane, double beam bridge crane, gantry crane, bridge crane, metallurgical special bridge crane, gantry crane, gantry crane, boom type cranes, cantilever crane, column, wall crane crane, balance crane, tower crane, portal crane, mobile crane, vehicle bridge, gantry crane and suspension cable crane rail crane, gantry crane, port heavy crane, crane, crane and trolley, transmission machinery, electroplating crown and a variety of detection equipment ceramic thermocouple The connection of signal transmission, control and measurement in the control, monitoring circuit and distribution unit of frequent mobile electrical equipment
Cable structure:
Conductor: multi-strand stranded wire conductor, in accordance with VDE 0295 and IEC 60288 class 5 conductor
Insulation: sheathed thermocouple special rubber mixture
Core wire: color or code core wire, 3 cores and above with yellow and green double (optional)
Black core wire, white digital code, with yellow and green lines
Color core wire, with yellow and green lines
Black core wire,Wear-resistant thermocouple white digital code, no yellow and green lines
Color core wire, no yellow and green lines
Core line arrangement: one word or plum blossom
Shielding: bare copper wire or tinned copper wire, weaving density ≥80%
Reinforcing parts: two torsion free self-supporting soft steel wire, bearing operating tension (fiber rope is optional)
Sheath: special rubber mixture
Jacket color: black,Armored thermal resistance according to customer needs to choose a variety of colors
Cable characteristics:
The long-term operating temperature of the cable shall not exceed 70℃
Excellent tensile, waterproof, wear-resistant and soft properties
Word arrangement:Boiler Specific Thermocouple free use length no more than 35 meters, movement speed no more than 4 meters/second
Plum blossom arrangement: free use length no more than 80 meters, movement speed no more than 10 meters/second
Flame retardant: flame retardant self-extinguishing conforms to IEC 60332-1
Cable technical parameters:
Working voltage: 450/750v 0.6/1kv
Test cable: 2500V 3500V
Conductor resistance 20℃ : multi-strand fine twisted copper wire according to VDE 0295 and IEC 60228 class 5
Insulation resistance: 50 M or more Ω/km (20 ℃)
Minimum bending radius: fixed installation 8 X D (cable outer diameter)
Mobile installation 10 X D (cable outer diameter)
Operating temperature: fixed installation – 30 ~ +70℃
Mobile installation – 20 ~ +70℃
